Products

What are our DaSeT/VoSeT robots and features?

DaSeT and VoSeT are the Orange robot solutions, recommended by the Group, and deployed in 23 affiliates.

DaSeT Robot

DaSeT robot is designed for end to end tests of data services in mobile networks 2G/3G/4G/5G NSA/5G SA and fixed networks (xDSL/FTTH/private network). Robot can be equipped with 2G/3G/4G/5G NSA/5G SA modems, extra network card or extra video card for testing of IPTV and SAT TV services. More than 25 different mobile and fixed services can be tested by this one testing tool in mobile and fixed networks.

Oxygen Icon Box

One testing tool for data services

Oxygen Icon Box

Mobile/Fixed networks

Oxygen Icon Box

Portable robot available

Oxygen Icon Box

IP TV/ SAT TV

Oxygen Icon Box

Monitoring of Android Applications

Oxygen Icon Box

Monitoring of iOS Applications

Oxygen Icon Box

Daset Android App for data tests

Android Application

Android App is developed for data tests in mobile networks for temporary measurements where standard robot cannot be installed. VPN/GIN connection is not needed for connection to central database. Recommended remote connection with TeamViewer Host for
Samsung app

Oxygen Icon Box

WEB Page tests

Oxygen Icon Box

HTTP DL/UL

Oxygen Icon Box

YOUTUBE Video

Oxygen Icon Box

PING

Oxygen Icon Box

SMS

Oxygen Icon Box

SAMSUNG Smartphone

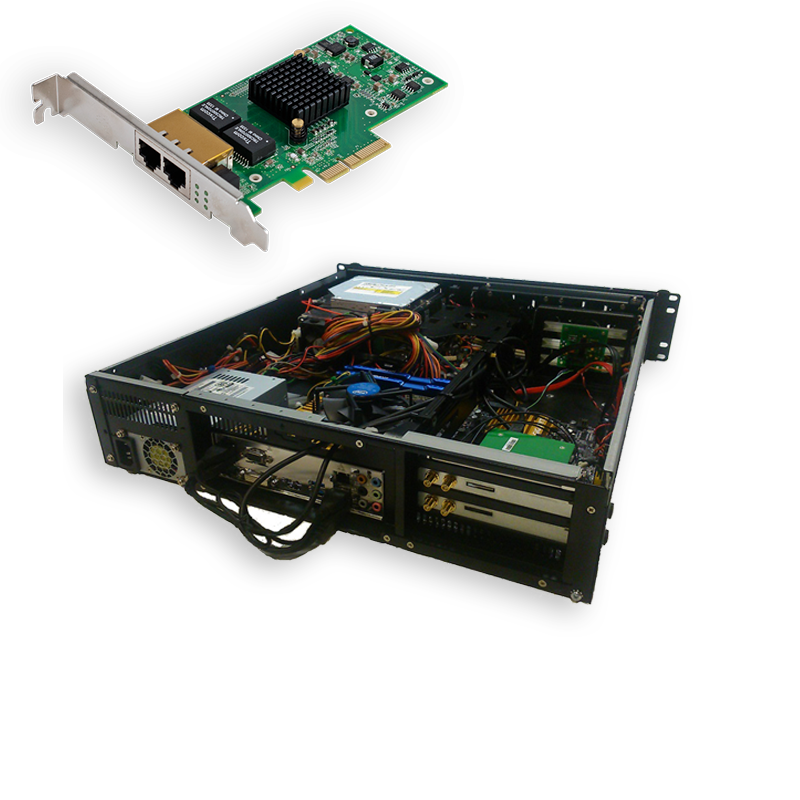

VoSeT and VoSeT Hybrid robots

Voset robots can be used for end to end testing of voice services in mobile networks (2G/3G/4G) and fixed networks (PSTN/ADSL/VoIP), including VoLTE and VoWiFi. Voice tests can be used with PESQ or POLQA licenses for measurement of audio quality.
VoSeT Hybrid robot carries a new feature to use VoSeT robot for data services as well. Please ask our support for more information about upgrade of your VoSeT robots to hybrid robots.
Basically three tests are supported by Voset robots. Voice call tests, VoiceMail test and IVR (Interactive Voice Response) test.

Oxygen Icon Box

Mobile networks

Oxygen Icon Box

Fixed networks

Oxygen Icon Box

VoLTE&VoWiFi

Oxygen Icon Box

Voice call

Oxygen Icon Box

Voice mail&IVR

Oxygen Icon Box

PESQ/POLQA license

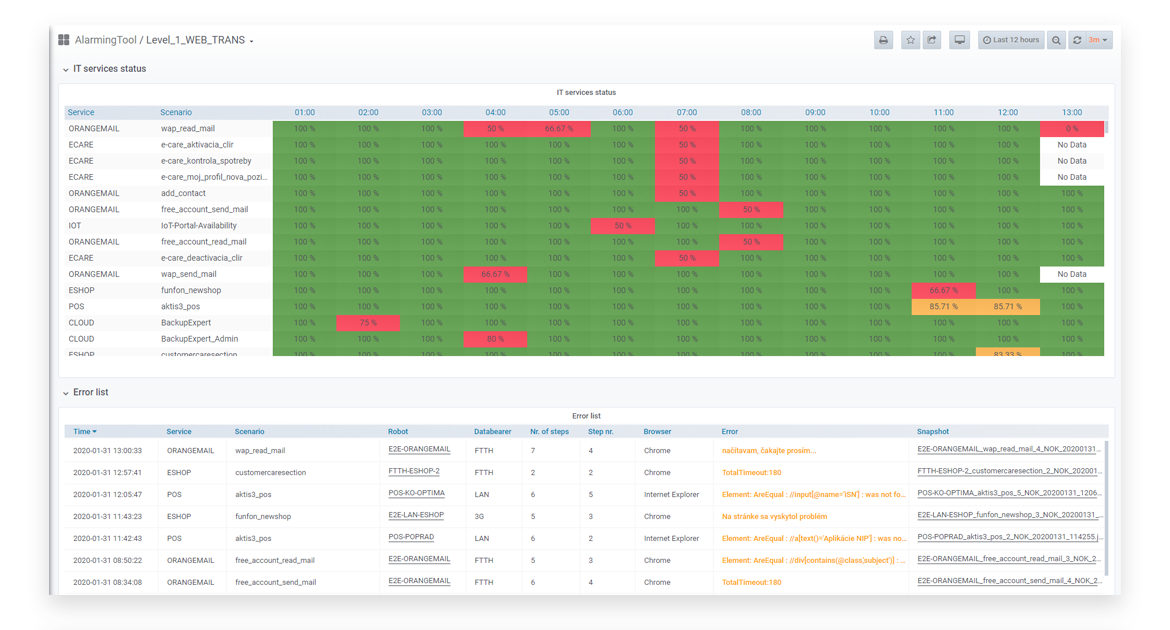

WEB Alarming Tool

The new web Alarming tool is designed to supervise your data, voice and TV services in real time. This new tool is available through public internet and you can use it from your office, home or meeting room. It is secured by SSL certificate.
One screen is enough to cover results from all your DaSeT/VoseT robots. It is easy to check status of your services in four levels and to detect any outage or degradation. This new tool brings changed service oriented view on results. It is not split in according to robots but according to tested services (HTTP, DNS, FTP, SMS, etc.) or networks (2G/3G/4G/5G/ADSL/FTTH). New tests are added automatically to the Alarming tool.

WEB Reporting Tool

The new Grafana web Reporting tool covers all features from the current web Reporting tool with enhanced features integrated based on your feedbacks. The new tool provides faster responses with customized home screen and dashboards. The new Reporting tool provides multiple selections for better evaluation of performance based on different robots, APNs or operators. This brings a better performance view on different places or operators with many quick time period ranges and zoom feature as well as map preview of robot locations. Dashboards can be easy shared between registered and unregistered users with an alerting email option if predefined threshold is reached or export to PDF or CSV files.

Remote Viewer

The Remote Viewer application is dedicated for real time monitoring in according to test results coming from DaSeT and VoSeT robots. The Remote Viewer provides simple view of tested services with basic presentation of test results and possibility to see all details from selected test including all KPIs. The Remote Viewer provides also possibility to display graphical view of test results with online chart feature, possibility to create service messages and to export test results to the Excel sheet or txt file.

Are you interested?

Feel free to contact us if you want to know more about our solution
CONTACT
Your IP address: 18.118.209.158
General information about architecture, services, KPIs, requests for new requirements and features are provided by TSC leader.
